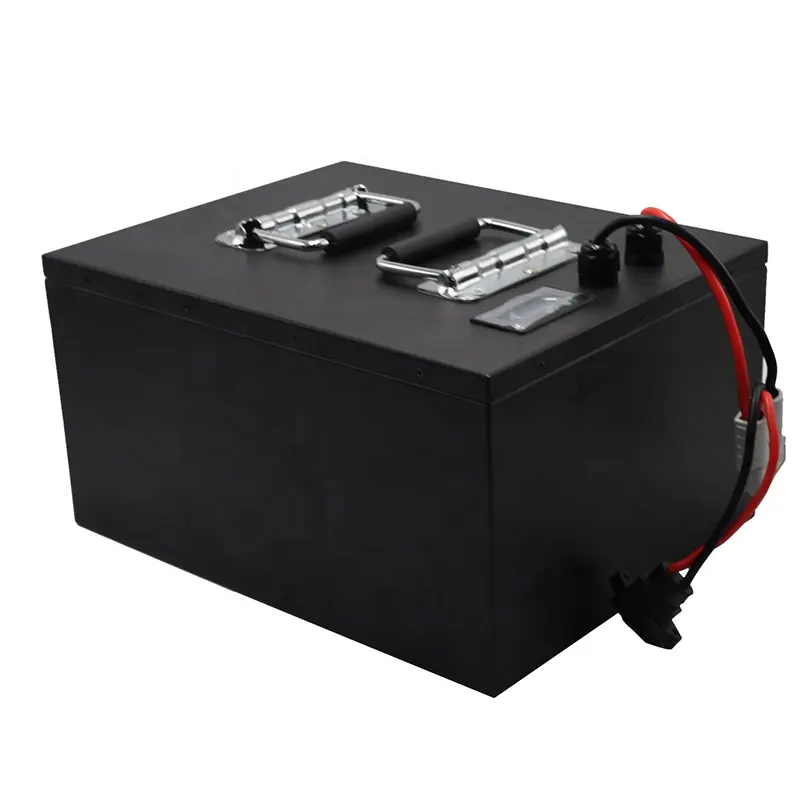

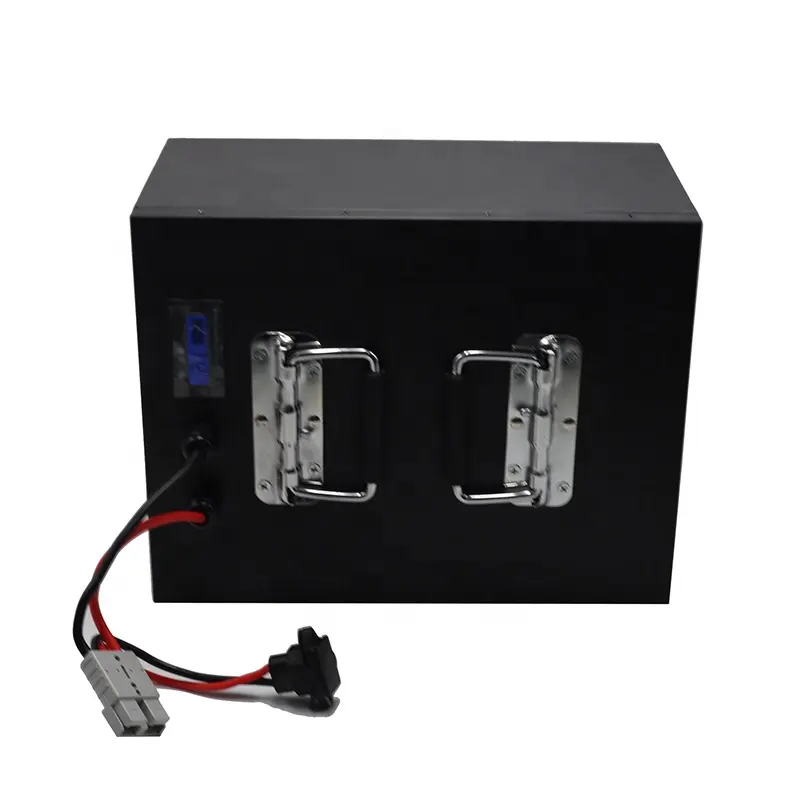

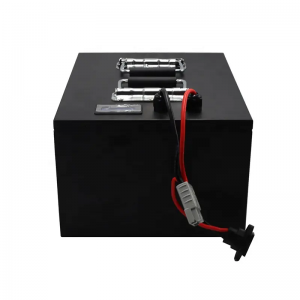

Pacote de bateria LiFePO4 personalizado 72v 60ah Bateria de veículo elétrico Pacote de íons de lítio para carros EV

2023-06-06 02:13

Especificação

Marca	TUDO EM UM
Modelo	AIN7260
garantia	5 anos
Voltagem nominal	76.8V
Capacidade nominal	[email protected]/customize
Energia	4416Wh
Resistencia interna	≤50mΩ
Ciclo da vida	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Auto-descarga	≤3,5% por mês a 25 ℃
Max.Charging Voltage	87.6 V
Modo de Carregamento	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Corrente de Carga	30A
Corrente de carga máxima	60A
Corrente de descarga	30A
Max. discharge Continuous Current	60A
Max.Pulse Current	120A(<3S）
Tensão de corte de descarga	60V
Temperatura de carga	0 ℃ a 45 ℃ (32 ℉ a 113 ℉) @ 60 ± 25% de umidade relativa
Temperatura de Descarga	-20 ℃ a 60 ℃ (-4 ℉ a 140 ℉) @ 60 ± 25% de umidade relativa
Temperatura de armazenamento	0 ℃ a 45 ℃ (32 ℉ a 113 ℉) @ 60 ± 25% de umidade relativa
Resistência à Pó de Água	IP55
Célula e formato	LFP  60AH 24S1P/customize
Invólucro	Metal Case
Dimensão (L * W * H * TH)	customizar
Peso	50kg
terminal	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
Método de cobrança	CC CV
Terminal Type	M6 or Anderson or another bolt screw/customize
Certificado	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Lembrete

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Inscrição

Nossa fábrica

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Embalagem e envio

Embalagem

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

Remessa

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



Perguntas frequentes

P: Como devo pagar? Quais formas de pagamento você aceita?
A: T/T, PayPal, Western Union.

Q: O pedido da amostra é aceitável?
R: Sim, para a maioria das baterias, os pedidos de amostra para testar a qualidade são razoáveis e aceitáveis.

P: A qualidade da sua bateria foi aprovada?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

P: Como você pode provar que suas células são 100% originais?
R: Podemos mostrar a lista do pacote original e outros documentos relacionados.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

P: Qual é a sua garantia?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. Para danos causados, como protuberância / soldagem da bateria, bateria sem proteção BMS causada pelo carregamento.
