Bateria de lítio profunda personalizada do ciclo 36V 48V 72V 50ah 80ah 100ah para o carrinho de golfe RV campista

2024-03-15 02:39

LiFePO4 Battery for Golf Cart ( OEM/ODM ) TECHNICAL SPECIFICATION
Data sheet	Voltagem nominal	Capacidade nominal	Nominal Energy	Dimensão	Peso
36V  (Support Customized Capacity/Size)
LFP36-50	38,4 V	50 ah	1920Wh	522*238*218mm	≈18.5kg
LFP36-60	38,4 V	60 ah	2304Wh	522*238*218mm	≈21kg
LFP36-80	38,4 V	80 ah	3072Wh	522*238*218mm	≈25.5kg
LFP36-100	38,4 V	100 ah	3840Wh	522*238*218mm	≈31kg
48V  (Support Customized Capacity/Size)
LFP48-50	51,2 V	50 ah	2560Wh	522*238*218mm	≈25kg
LFP48-60	51,2 V	60 ah	3072Wh	522*238*218mm	≈31kg
LFP48-80	51,2 V	80 ah	4096Wh	522*238*218mm	≈32.5kg

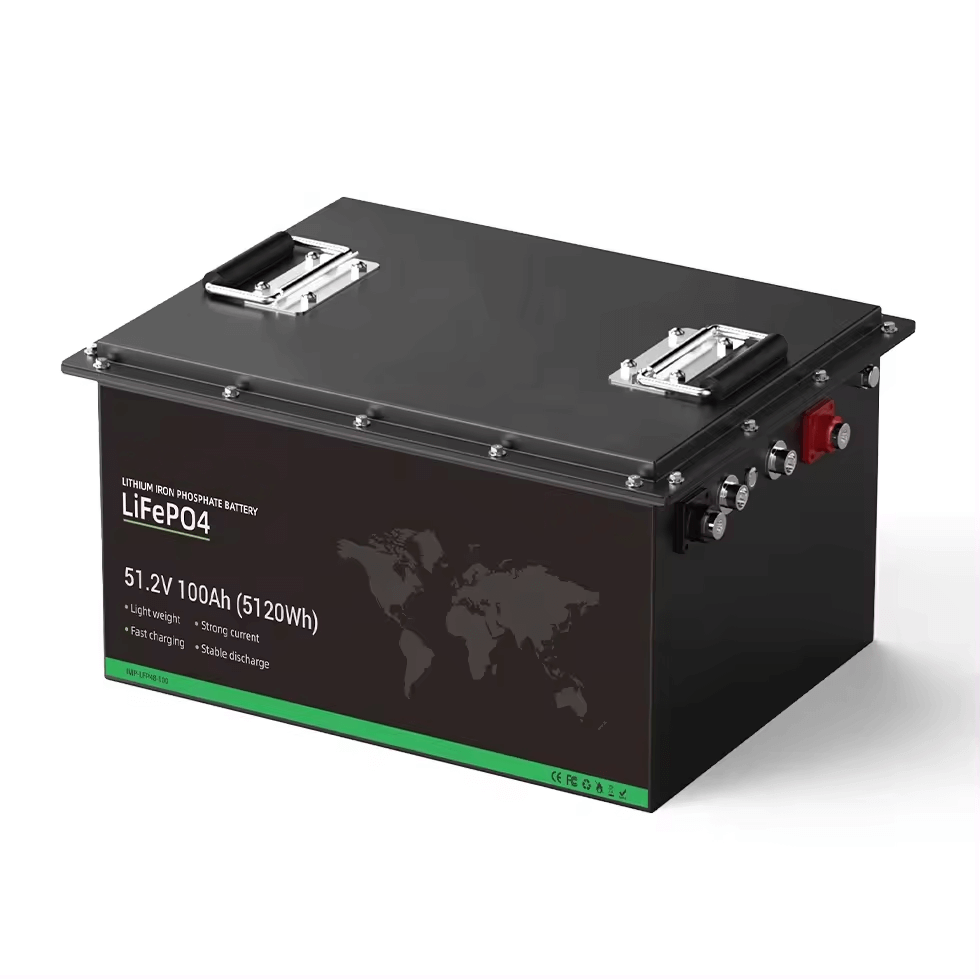

LFP48-100	51,2 V	100 ah	5120Wh	640*245*220mm	≈38.5kg
72V (Support Customized Capacity/Size)
LFP72-50	76.8V	50 ah	3840Wh	470*330*150mm	≈50kg

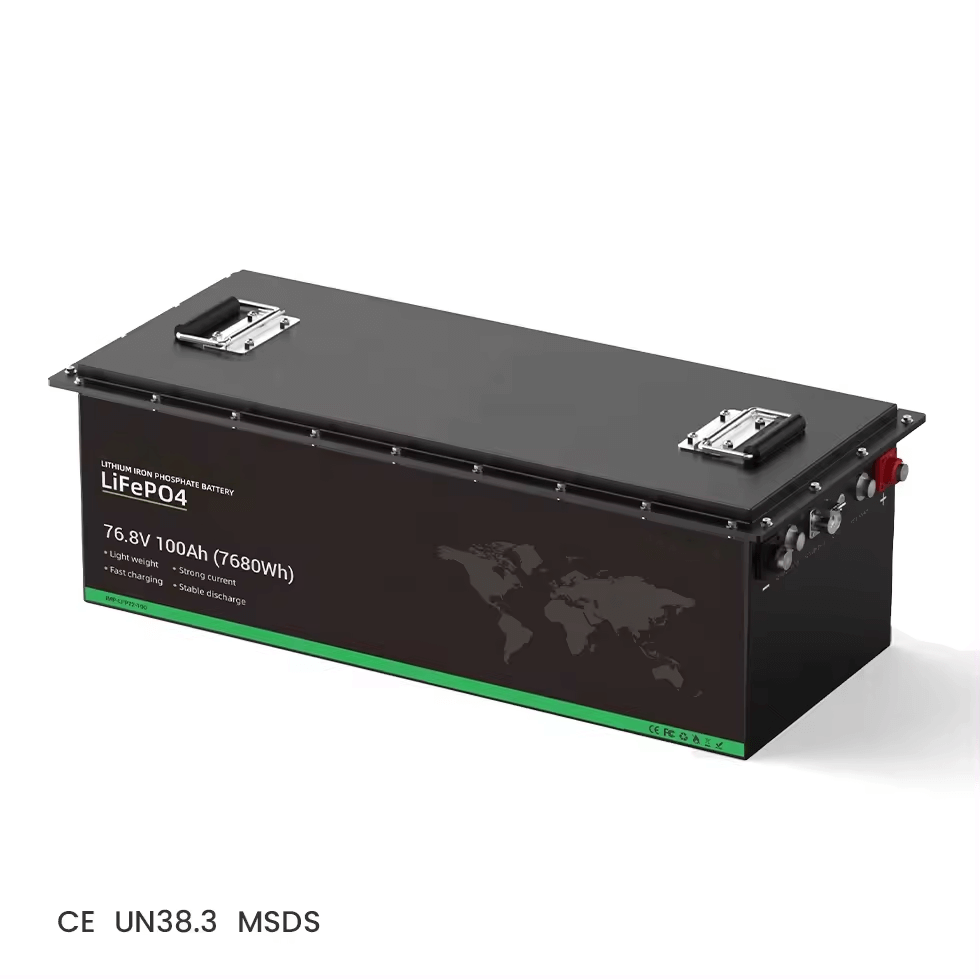

LFP72-100	76.8V	100 ah	7680Wh	730*350*150mm	≈65kg
General
Ciclos de vida		≥6000 cycles (80%DOD), at 25°C
Temperatura de carga		0 ~ 45°C (32 ~ 113°F)
Temperatura de Descarga		-20 ~ 55°C(-4 ~ 131F)
Temperatura de armazenamento		-10 ~ 45°C(14 ~ 113°F)
Communication Mod		Vehicle CAN/ Charge CAN/ Intranet CAN/ 485 communication/ Wireless communication

The Right Choice

1. ALL IN ONE lithium batteries are drop-in solutions

2.Outlasts equivalent lead-acid batteries

3.Top quality standards and proven results in many applications

atuação

1. Single battery operation
2. Little or no voltage drop
3. Fast travel speed at all levels of discharge

ALL IN ONE Battery Safety and Sustainability

1. No acid fumes or spills
2. Reduce use of electricity
3. Less waste
4. 99% recyclable

Inscrição

Nossa fábrica



Envio e embalagem

1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. Para pedidos grandes, envie por AIR ou OCEAN.

Perguntas frequentes

Q: você é uma empresa comercial ou fabricante?
A: We are ALL IN ONE original factory from Anhui Province , China.

Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

Q: Posso ter amostras para testar? E qual é o prazo de execução para o pedido da amostra?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

Q: você aceita OEM / ODM?
A: Yes,it is available.We have OEM group to design battery case.

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
R: SIM, o App permite que você leia a voltagem de cada um a qualquer momento.

Q: você tem capacidade real da bateria?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

P: Que tipo de certificado você possui?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

Q: você tem MOQ?
R: Sem limitação. A ordem pequena também é bem-vinda. Mais quantidade tem melhor preço, iremos verificar o melhor preço para você.

P: Qual é o seu prazo de pagamento?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。

Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Usando carregadores de lítio para acordar a bateria. O carregador de lítio desperta as baterias automaticamente.
