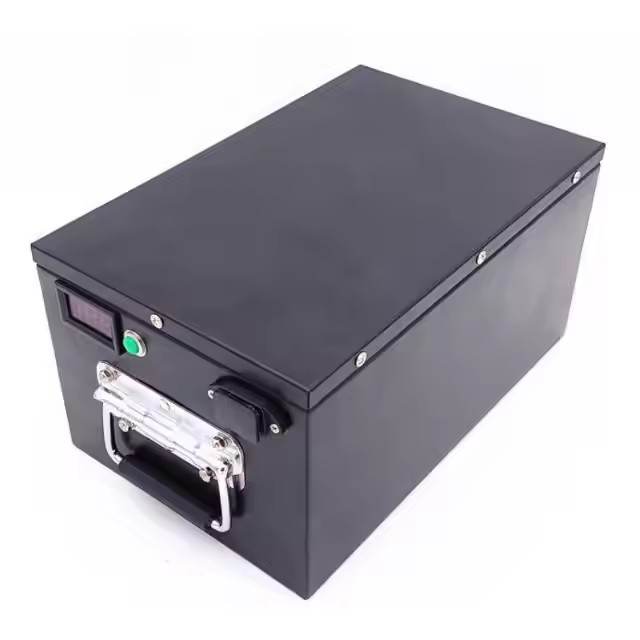

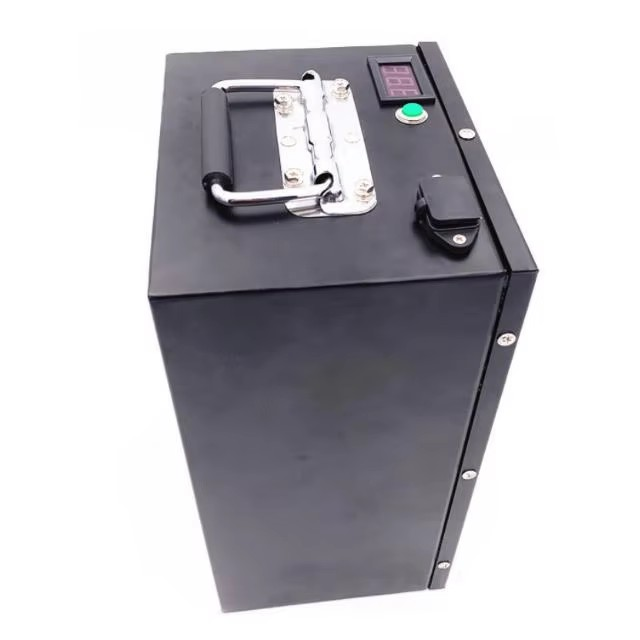

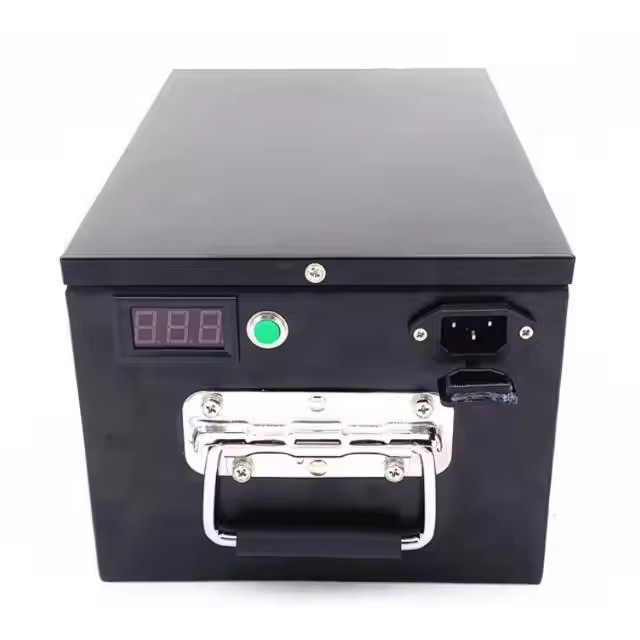

Bateria de íons de lítio LiFePO4 60V 100Ah para robô inteligente AGV

2025-01-13 05:29

Especificação

Item	Especificação	Nota
Voltagem nominal:	60V	Any voltage can be customized
Nominal Capacity:	100 ah	Any capacity can be customized
Discharge Cut-Off:	47.5V
Charge Cut-Off:	69.3V
Charge Current:	30A	Free customization service
Cont. Discharge:	100A	Free customization service
Peak Discharge:	200A	Free customization service
Impedância:	≤200mΩ
Charge Temperature:	0℃ - 45℃
Discharge Temperature:	-20℃ - 60℃
Charge Method:	CC CV
Life Cycle:	6000 times	80% DOD, Max. 100% DOD
BMS:	With BMS
Dimensão:	Flexible	Any dimension can be customized
Peso:	120KG

Recursos

• More than 6000 Cycles
  • Battery modules available for parallel and series for higher voltage and capacity
  • BMS Passive cell balance function
  • IP66, IP67, water proof, dust proof, Temperature monitoring
  • Customization for Size and Discharge and charge rate
  • Free of Maintenance, contains no poisonous material
  • No leakage, no hazardous chemistry
  • Quick delivery
  • Lighter in weight, smaller in size to save space.
  • Powerful to increase robust operation for your marine boat or RV
  • Fast charging and high power discharge rate available
  • No need to add water nor worry about maintenance.
  • We offer 5 years regular warranty and it can be extended up to 10 years.

BMS embutido

Item	Content	Criterion
Over charge Protection	Over charge detection voltage	3.6~4.25V
	Over charge detection delay time	0.1 S ~ 6S
	Over charge release voltage	3.5~4.25V
Over discharge protection	Over discharge detection voltage	2.0~3.3V
	Over discharge detection delay time	0.1 S ~ 6S
	Over discharge release voltage	2.1~3.4V
Carregar Proteção contra sobrecorrente	Charge Over current detection current	1~100A
	Charge Over current detection delay time	0.02S~ 6S
Descarga Over current protection	Discharge Over current detection current	1~600A
	Discharge Over current detection delay time	0.02S~ 6S
Curto protection	Short protection detection delay time	100 u S
	Detection condition	B+ P-0.2 Omh
	restore	Cut off load
Interior Resistance	Main loop electrify resistance	2 OMh(50A)
Current consumption	Current consume in normal operation	1.5mA Type
Current consumption	Current consume in sleep operation	2 uA Type

Note BMS is customizable. More advanced functions available, such as Bluetooth, RS485, CAN, Autocratically Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!

LIFEPO4	Dimensões	Peso	with BMS	RS485/Bluetooth	Cycles	garantia
60V 10AH	195*165*175mm	9.5kg	sim	acessível	6000times	5 anos
60V 20AH	330*175*220mm	19kg	sim	acessível	6000times	5 anos
60V 30AH	407*175*235mm	25kg	sim	acessível	6000times	5 anos
60V 40AH	407*175*235mm	28 kg	sim	acessível	6000times	5 anos
60V 50AH	525*240*215mm	44kg	sim	acessível	6000times	5 anos
60V 120AH	420*360*550mm	84kg	sim	acessível	6000times	5 anos
60V 200AH	1000*600*182mm	156kg	sim	acessível	6000times	5 anos

Self-heated Function (Optional)
To relieve winter range anxiety in some freezing environment, the BMS can bring with
self heating function. Resistance heating rapidly warms the inside of battery.
Start heating temperature:≤0°C. Stop heating temperature:≥10°C.
Can improve battery charge / discharge performance.

Inscrição

Nossa fábrica

ALL IN ONE is a lithium battery Manufacturer for over 15 years, recognized by customers from

Australia,Europe and North America.We offer Top quality with very good price for lithium lifepo4 batteries!



Perguntas frequentes

1. P: Vocês aceitam pedidos de amostra?

R: Sim, bem-vindo para solicitar amostras, temos armazéns nos Estados Unidos e na Europa, algumas amostras podem ser enviadas rapidamente.

2. P: O produto tem um BMS integrado?

R: Sim, BMS inteligente incluindo JBD/PACE/SmarTec integrado para garantir que as baterias sejam gerenciadas de forma inteligente.

3.Q: Can your company accept customized order ?

R: Claro que a personalização é o nosso ponto forte.

4. P: A bateria pode ser compatível com os inversores do mercado?

R: Sim, senhor, nossos pacotes são compatíveis com mais de 20 marcas de inversores no mercado, incluindo Victron, Goodwe, Solis, Growatts, Voltronics, Deye e outras marcas famosas.

5. P: Como é a garantia?

A: 5 years upto its usage.

6. P: Você tem alguma certificação?

A: CE, UN38.3 and MSDS, Pack UL1973 is under processing.

7. P: Como é a forma e o prazo de entrega?

A: 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.

8. P: Vocês têm uma fábrica de verdade?

A: Yes, our factory is in Anhui. We welcome you to visit our factory.
